On this marine guide, here are all you need to know about international shore connection (ISC).
What is ISC?

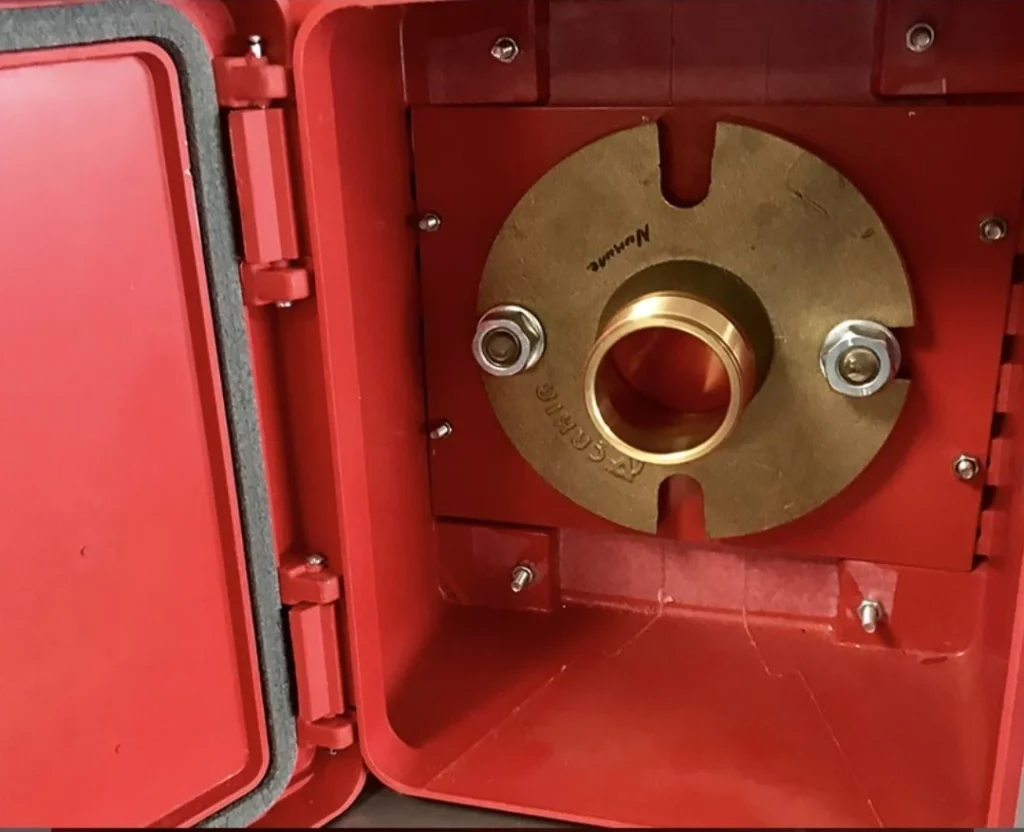

ISC is a standardized flange used to connect the ship’s fire main to an external water source (shore hydrant or another vessel) in emergencies.
In the unfortunate case of a fire, a Shore Connection functions as a backup measure for firefighters on ships. In case there is a total failure of pumps on board, the ship’s own water supply is not sufficient. The ISC makes a connection to shore where another water source can take over. It provides a means to connect an external water source, typically from shore facilities or another vessel, to the ship’s fire main.
ISC Use cases:
• Failure of fire pumps
• Major onboard fire
• Fire while in port
• Support from another vessel
• Electrical failure
• Engine room flooding
Technical Parameters
• Maximal pressure: 1.0 N / mm2
• Thread thickness: 2”
• Dimensions: 285 x 260 x 70 mm
• Weight: 3 up to 7 kg
Key Features and Requirements For ISC In Line With SOLAS Regulations
• Universal design (SOLAS-compliant)
• Mandatory for ships ≥ 500 GT
• Stored in an accessible location onboard
• BMC glass fiber polyester box, flame retardant
• Cabinet doors can be opened in both the right and left directions
• Stainless steel lock and hinges
